{"Description":"

Molex SST SST-PB3-CLX Series PLC Communication Modules.<\/p>

The BradCommunications\u2122 SST Profibus communication module connects your Rockwell ControlLogix\u00ae controller to PROFIBUS DP network.
<\/p>","Overview":"

The BradCommunications\u2122 SST\u2122 Profibus\u00ae module connects your Rockwell ControlLogix\u00ae controller to Profibus as a master or slave to scan or emulate PROFIBUS DP I\/O. With the new user-defined data space of 1984 Bytes Input and 1968 Bytes Output, the BradCommunications\u2122 SST\u2122 Profibus module provides a cost efficient solution to connect the ControlLogix CPU with large PROFIBUS networks.<\/p>","Key FEatures":"

\u2022 Enhanced design!
- 100% backward compatible with previous generation (SST-PFB-CLX)
- Up to 2 times faster
- Easier to change module\u2019s configuration with PLC in RUN mode
- Runs without ladder code
- Module can \u201cSet Slave\u201d address
- Dynamically add\/remove Profibus slaves from scan list
\u2022 Remote Configuration and diagnostic through RSLinx \u00ae
\u2022 Profibus modules can be used in Local or Remote (through CIP networks) Racks
\u2022 Certified PROFIBUS CommDTM driver for FDT Frame engineering tools
\u2022 Provides user-defined data space up to 1984 Bytes Input and 1968 Bytes Output
\u2022 Supports all PROFIBUS baud rates including 45.45 kbps
\u2022 Manages DP-V1 Services
\u2022 Simultaneous operation of PROFIBUS DP Master and Slave
\u2022 Multiple SST-PB3-CLX-RLL modules can be used in one CLX rack Protocols
\u2022 PROFIBUS DP-V0 Master Class 1&2
\u2022 PROFIBUS DP-V1 Master Class 1&2
\u2022 PROFIBUS DP-V0 Slave
<\/p>","Remote Link Library":"

The Remote Link Library software provides added functionality to the BradCommunications SST Profibus module by allowing you to remotely monitor or download changes to your Profibus configuration. This is done by routing data from the BradCommunications SST Profibus DP Master Configuration software through Rockwell Automation\u00ae\u2019s RSLinx software via Ethernet to the Allen-Bradley ControlLogix backplane. The Profibus Scanner can be used on a Local Rack or on a Remote Rack through CIP networks like EtherNet\/IP or ControlNet.<\/p>","CommDTM Driver for FDT Tools":"

By purchasing SST-PB3-CLX-DTM part number, you will get the driver license to use the certified CommDTM driver conforms to FDT v1.2 specifications. It is the ideal solution for connecting FDT engineering tools such as PACTware\u2122 or FieldCare\u2122 to PROFIBUS. It allows the linking with Device DTMs for the configuration and diagnostics with DP-V1 devices including Profibus PA field instruments.<\/p>","Typical Applications":"

\u2022 Chemical or pharmaceutical application running PROFIBUS PA
\u2022 Machine builder application with high-speed control requirements<\/p>"}

Molex SST SST-PB3-CLX Series PLC Communication Module

Related Products

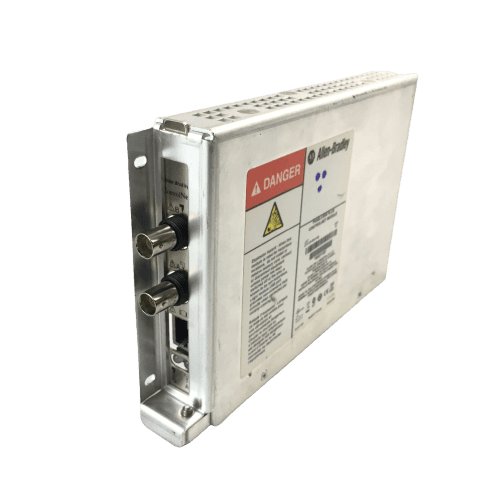

Allen-Bradley 2711P-RN15S ControlNet Communication Module

Siemens 6ES7153-2BA10-0XB0 Simatic Communication Module

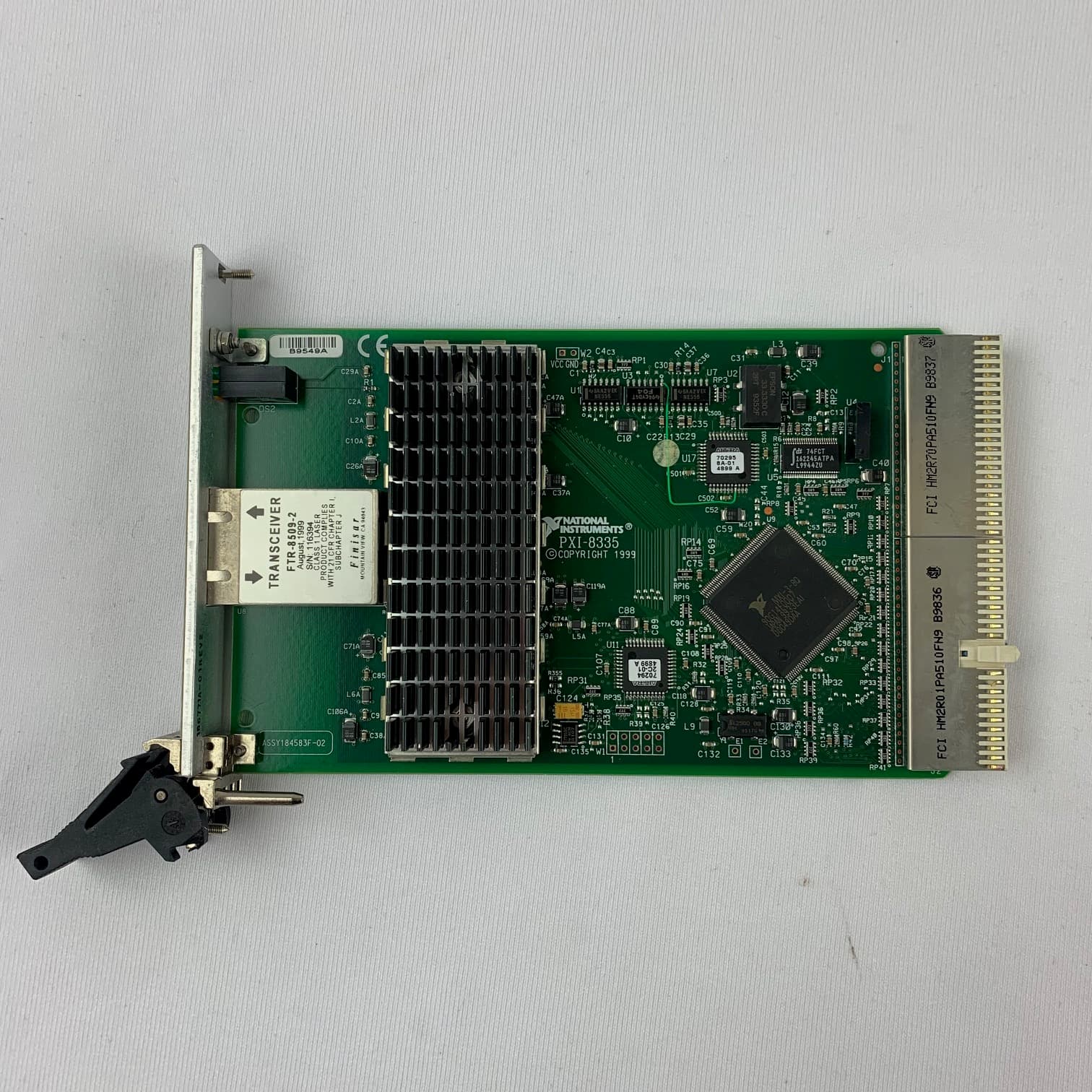

National Instruments PXI-8335 Communication Module
